GW190701_203306

Documentation

Release: GWTC-2

Event UID: GW190701_203306-v1

Names: GW190701_203306

GPS: 1246048404.6

UTC Time: 2019-07-01 20:33:06

GraceDB: S190701ah

GCN: Query for Circulars Notices

Timeline: Query for segments

DOI: https://doi.org/10.7935/99gf-ax93

Data sourced from frame channels. FrameChannels: [ H1:DCS-CALIB_STRAIN_CLEAN_C01, L1:DCS-CALIB_STRAIN_CLEAN_C01, V1:Hrec_hoft_16384Hz ] Data sourced from frame types: FrameTypes: [ H1_HOFT_C01, L1_HOFT_C01, V1Online ] To open GWF files, use channels names as shown for GWTC-1: https://doi.org/10.7935/82H3-HH23

cWB Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) 0.55
network_matched_filter_snr 10.2

GWTC-2 cWB Waveform GW190701_203306

Date added: March 9, 2021

Source File

Waveform Reconstruction for GW190701_203306

Waveform Reconstruction for GW190701_203306

Comparison between the unmodeled waveform reconstruction of the cWB pipeline and the maximum likelihood waveform found by the LALInference Bayesian analysis (LI). The whitened data used by cWB are also shown.

Additional Plots

All cWB GWTC-2 reconstructions

README File

GstLAL Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) 0.01
network_matched_filter_snr 11.6
p_astro 1.00

GWTC-2 PE for GW190701_203306 (2nd release)

Waveform Family: PublicationSamples

Date added: March 9, 2021

chi_eff -0.07 +0.23 -0.29
chirp_mass (M_sun) 55.5 +7.3 -8.1
chirp_mass_source (M_sun) 40.3 +5.4 -4.9
final_mass_source (M_sun) 90.2 +11.3 -8.9
luminosity_distance (Mpc) 2060 +760 -730
mass_1_source (M_sun) 53.9 +11.8 -8.0
mass_2_source (M_sun) 40.8 +8.7 -12.0
redshift 0.37 +0.11 -0.12
total_mass_source (M_sun) 94.3 +12.1 -9.5

Source File

Glitch model and cleaned data

Posterior Samples DCC Entry

Skymap

Default PE

GWTC-2 PE for GW190701_203306 (1st release)

Waveform Family: PublicationSamples

Date added: Oct. 23, 2020

chi_eff -0.06 +0.23 -0.28
chirp_mass (M_sun) 55.8 +7.4 -7.9
chirp_mass_source (M_sun) 40.2 +5.2 -4.7
final_mass_source (M_sun) 90.0 +10.8 -8.6
luminosity_distance (Mpc) 2140 +790 -730
mass_1_source (M_sun) 53.6 +11.7 -7.8
mass_2_source (M_sun) 40.8 +8.3 -11.5
redshift 0.38 +0.12 -0.12
total_mass_source (M_sun) 94.1 +11.6 -9.3

Source File

Glitch model and cleaned data

Posterior Samples DCC Entry

Skymap

PyCBC Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) 11.27
network_matched_filter_snr 10.6
p_astro 0.59

H1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT

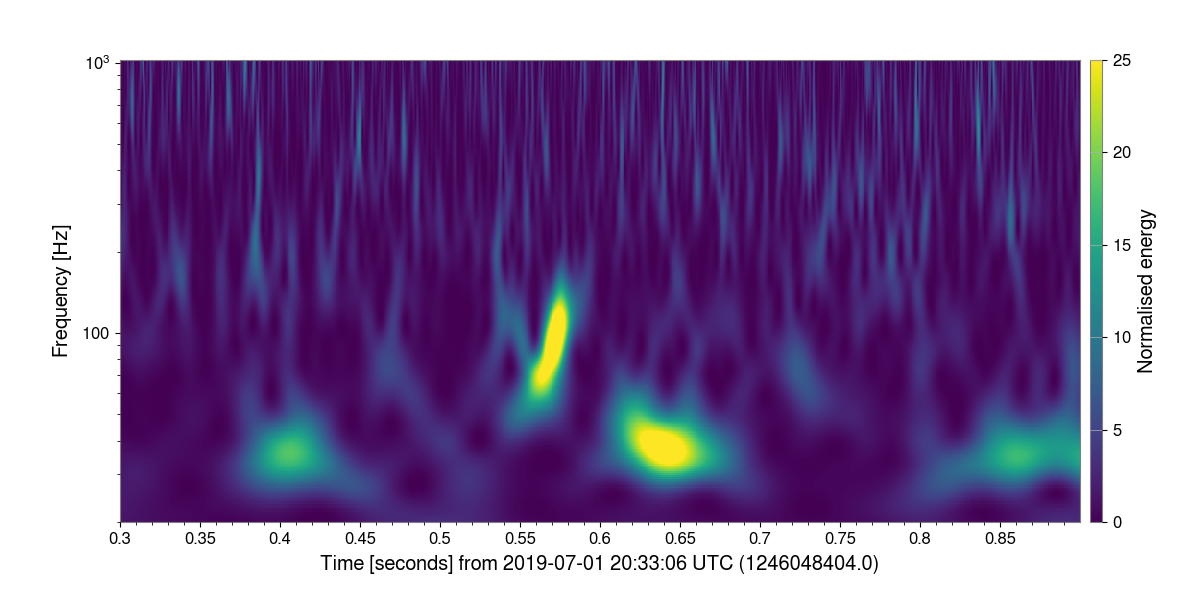

L1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT

V1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT
