GW190706_222641

Documentation

Release: GWTC-2

Event UID: GW190706_222641-v1

Names: GW190706_222641

GPS: 1246487219.3

UTC Time: 2019-07-06 22:26:41

GraceDB: S190706ai

GCN: Query for Circulars Notices

Timeline: Query for segments

DOI: https://doi.org/10.7935/99gf-ax93

Data sourced from frame channels. FrameChannels: [ H1:DCS-CALIB_STRAIN_CLEAN_C01, L1:DCS-CALIB_STRAIN_CLEAN_C01, V1:Hrec_hoft_16384Hz ] Data sourced from frame types: FrameTypes: [ H1_HOFT_C01, L1_HOFT_C01, V1Online ] To open GWF files, use channels names as shown for GWTC-1: https://doi.org/10.7935/82H3-HH23

GWTC-2 BayesWave Waveform GW190706_222641

Date added: March 9, 2021

Source File

Waveform Reconstruction for GW190706_222641

Waveform Reconstruction for GW190706_222641

Waveform reconstruction from BayesWave

cWB Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) ≤ 1.0e-03
network_matched_filter_snr 12.7

GWTC-2 cWB Waveform GW190706_222641

Date added: March 9, 2021

Source File

Waveform Reconstruction for GW190706_222641

Waveform Reconstruction for GW190706_222641

Comparison between the unmodeled waveform reconstruction of the cWB pipeline and the maximum likelihood waveform found by the LALInference Bayesian analysis (LI). The whitened data used by cWB are also shown.

Additional Plots

All cWB GWTC-2 reconstructions

README File

GstLAL Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) ≤ 1.0e-05
network_matched_filter_snr 12.3
p_astro 1.00

GWTC-2 PE for GW190706_222641 (2nd release)

Waveform Family: PublicationSamples

Date added: March 9, 2021

chi_eff 0.28 +0.26 -0.29
chirp_mass (M_sun) 75.1 +11.0 -17.5
chirp_mass_source (M_sun) 42.7 +10.0 -7.0
final_mass_source (M_sun) 99.0 +18.3 -13.5
luminosity_distance (Mpc) 4420 +2590 -1930
mass_1_source (M_sun) 67.0 +14.6 -16.2
mass_2_source (M_sun) 38.2 +14.6 -13.3
redshift 0.71 +0.32 -0.27
total_mass_source (M_sun) 104.1 +20.2 -13.9

Source File

Posterior Samples DCC Entry

Skymap

Default PE

GWTC-2 PE for GW190706_222641 (1st release)

Waveform Family: PublicationSamples

Date added: Oct. 23, 2020

chi_eff 0.32 +0.25 -0.30
chirp_mass (M_sun) 77.0 +10.0 -16.9
chirp_mass_source (M_sun) 42.0 +8.4 -6.2
final_mass_source (M_sun) 96.3 +16.7 -13.2
luminosity_distance (Mpc) 5070 +2570 -2110
mass_1_source (M_sun) 64.0 +15.2 -15.2
mass_2_source (M_sun) 38.5 +12.5 -12.4
redshift 0.79 +0.31 -0.28
total_mass_source (M_sun) 101.6 +17.9 -13.5

Source File

Posterior Samples DCC Entry

Skymap

PyCBC Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) 6.7e-05
network_matched_filter_snr 11.7
p_astro 1.00

PyCBC BBH Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) ≤ 4.6e-05
network_matched_filter_snr 12.3
p_astro 1.00

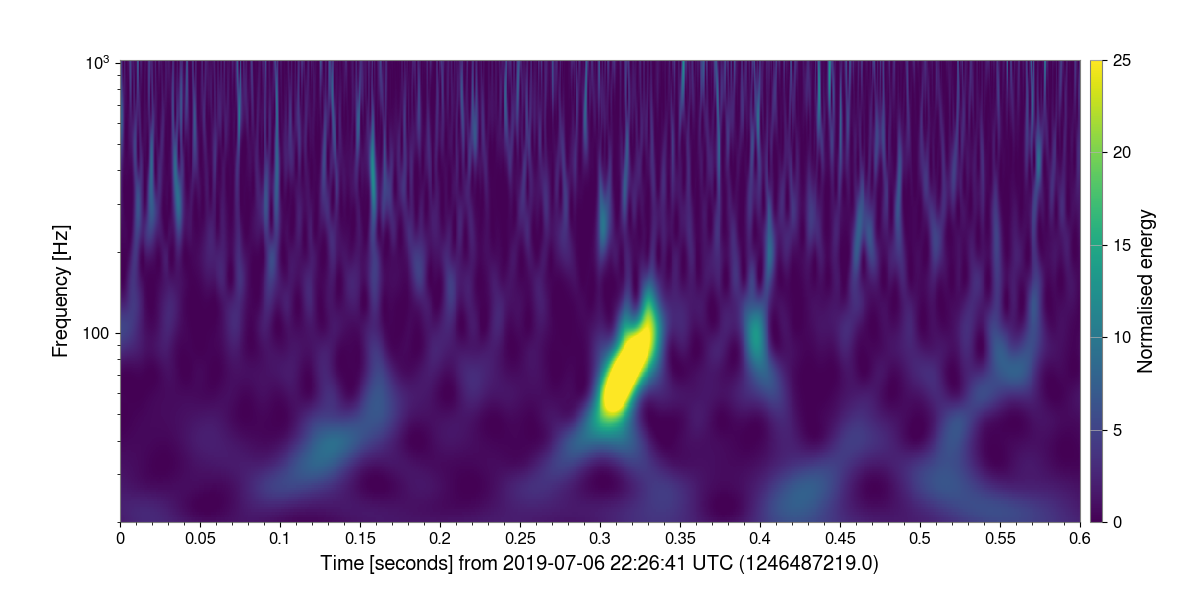

H1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT

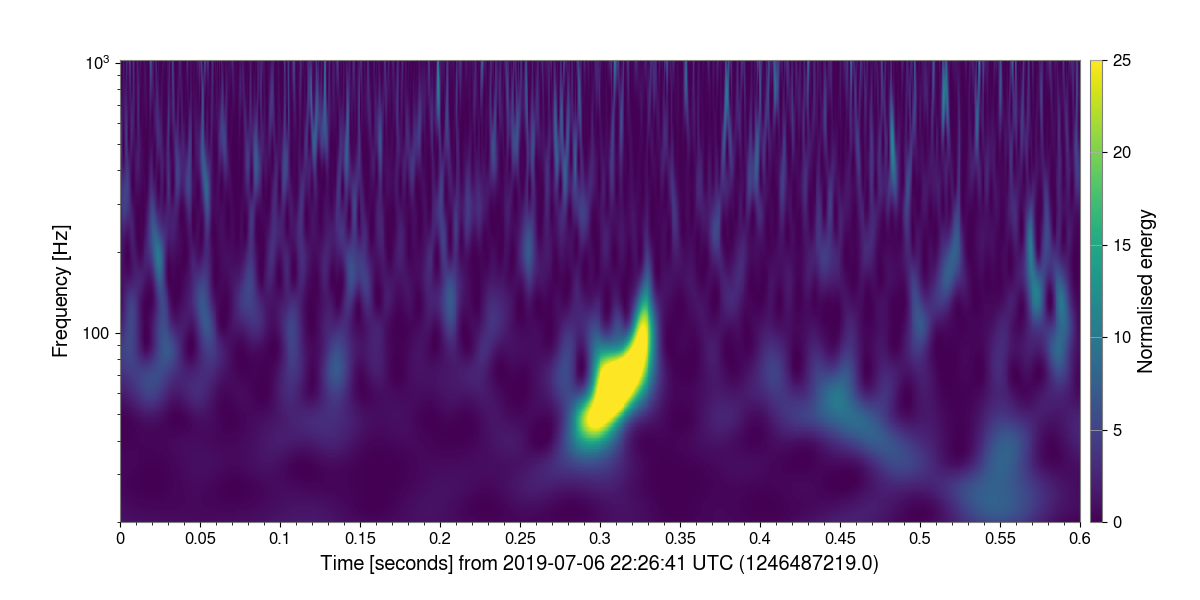

L1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT

V1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT
