GW190728_064510

Documentation

Release: GWTC-2

Event UID: GW190728_064510-v1

Names: GW190728_064510

GPS: 1248331528.5

UTC Time: 2019-07-28 06:45:10

GraceDB: S190728q

GCN: Query for Circulars Notices

Timeline: Query for segments

DOI: https://doi.org/10.7935/99gf-ax93

Data sourced from frame channels. FrameChannels: [ H1:DCS-CALIB_STRAIN_CLEAN_C01, L1:DCS-CALIB_STRAIN_CLEAN_C01, V1:Hrec_hoft_16384Hz ] Data sourced from frame types: FrameTypes: [ H1_HOFT_C01, L1_HOFT_C01, V1Online ] To open GWF files, use channels names as shown for GWTC-1: https://doi.org/10.7935/82H3-HH23

GWTC-2 BayesWave Waveform GW190728_064510

Date added: March 9, 2021

Source File

Waveform Reconstruction for GW190728_064510

Waveform Reconstruction for GW190728_064510

Waveform reconstruction from BayesWave

GWTC-2 cWB Waveform GW190728_064510

Date added: March 9, 2021

Source File

Waveform Reconstruction for GW190728_064510

Waveform Reconstruction for GW190728_064510

Comparison between the unmodeled waveform reconstruction of the cWB pipeline and the maximum likelihood waveform found by the LALInference Bayesian analysis (LI). The whitened data used by cWB are also shown.

Additional Plots

All cWB GWTC-2 reconstructions

README File

GstLAL Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) ≤ 1.0e-05
network_matched_filter_snr 13.6
p_astro 1.00

GWTC-2 PE for GW190728_064510 (2nd release)

Waveform Family: PublicationSamples

Date added: March 9, 2021

chi_eff 0.12 +0.20 -0.07
chirp_mass (M_sun) 10.1 +9.0e-02 -8.0e-02
chirp_mass_source (M_sun) 8.6 +0.5 -0.3
final_mass_source (M_sun) 19.6 +4.7 -1.3
luminosity_distance (Mpc) 870 +260 -370
mass_1_source (M_sun) 12.3 +7.2 -2.2
mass_2_source (M_sun) 8.1 +1.7 -2.6
redshift 0.18 +0.05 -0.07
total_mass_source (M_sun) 20.6 +4.5 -1.3

Source File

Posterior Samples DCC Entry

Skymap

Default PE

GWTC-2 PE for GW190728_064510 (1st release)

Waveform Family: PublicationSamples

Date added: Oct. 23, 2020

chi_eff 0.12 +0.19 -0.07
chirp_mass (M_sun) 10.1 +9.0e-02 -8.0e-02
chirp_mass_source (M_sun) 8.6 +0.5 -0.3
final_mass_source (M_sun) 19.5 +4.6 -1.3
luminosity_distance (Mpc) 890 +250 -370
mass_1_source (M_sun) 12.2 +7.1 -2.2
mass_2_source (M_sun) 8.1 +1.7 -2.6
redshift 0.18 +0.05 -0.07
total_mass_source (M_sun) 20.5 +4.5 -1.3

Source File

Posterior Samples DCC Entry

Skymap

PyCBC Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) ≤ 1.6e-05
network_matched_filter_snr 13.4
p_astro 1.00

PyCBC BBH Search Pipeline

Date added: Oct. 15, 2020

far (1/yr) ≤ 3.7e-05
network_matched_filter_snr 13.4
p_astro 1.00

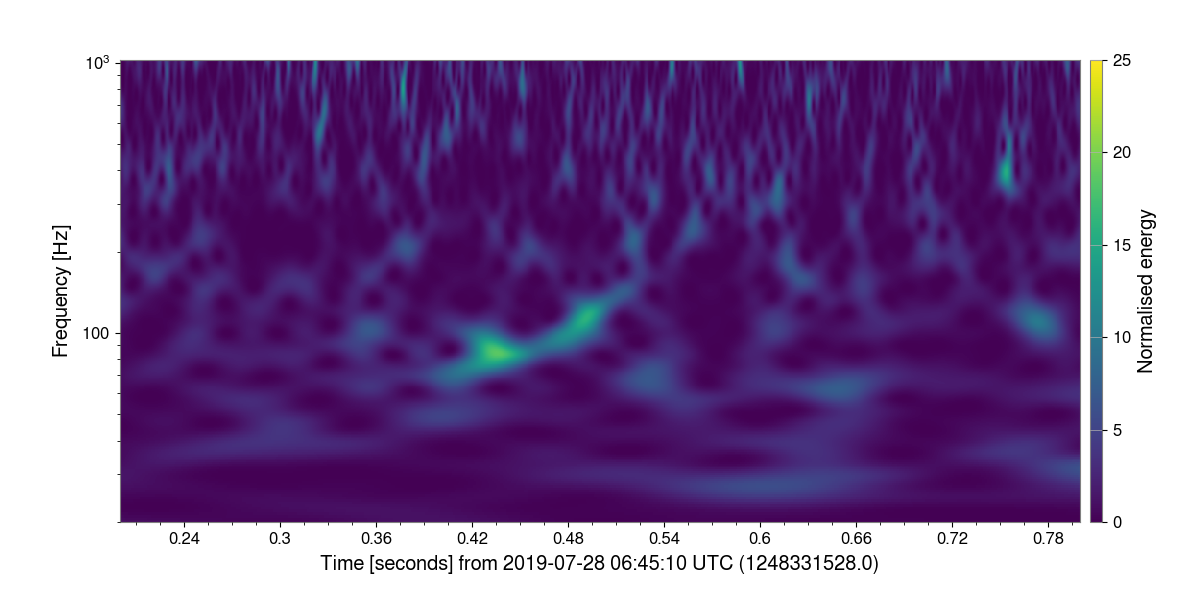

H1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT

L1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT

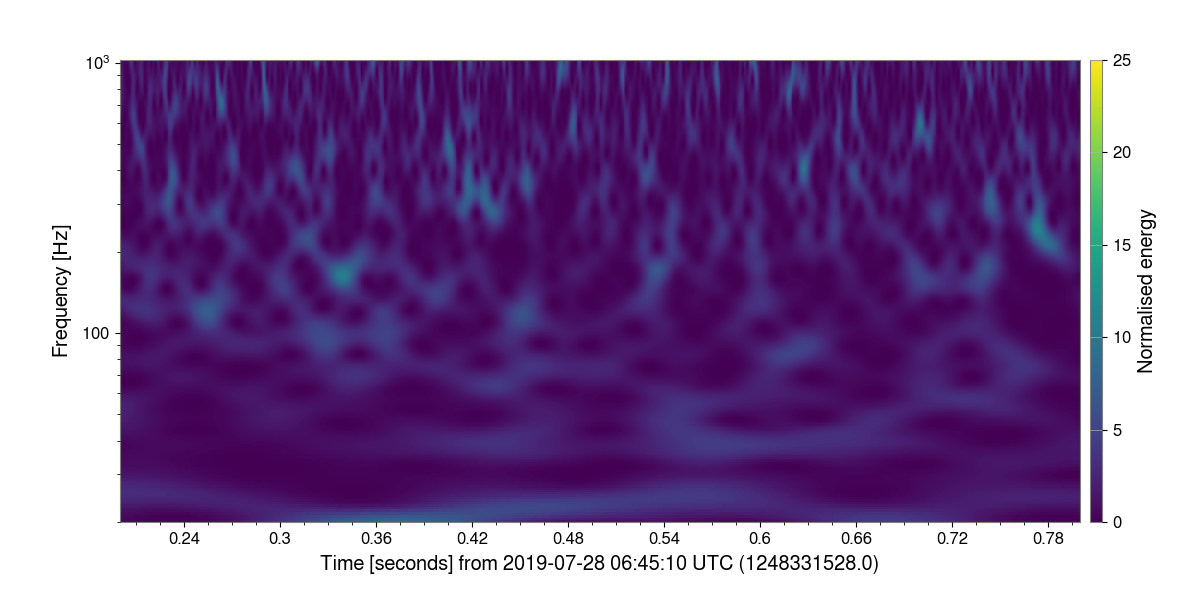

V1 strain

Card image cap
32sec • 16KHz: GWF HDF TXT
32sec • 4KHz: GWF HDF TXT
4096sec • 16KHz: GWF HDF TXT
4096sec • 4KHz: GWF HDF TXT
